Climate And vibration test chambers

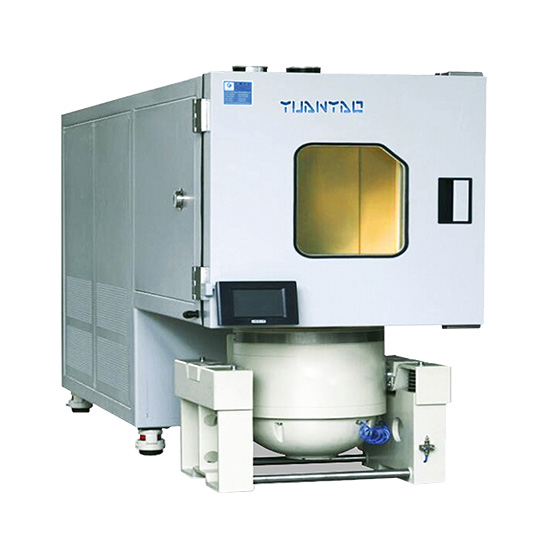

Climate And Vibration Combined Test

Model: YTHV-216 YTHV-343 YTHV-512 YTHV-720 YTHV-1000

Product Performance


  • Temperature: 0℃/-20℃/-40℃/-70℃ ~ +150℃

  • Humidity: 20%~98% RH (lower humidity is optional)

  • Vibration force:3KN /6KN /10KN /20KN /30KN, etc.

  • Vibration direction: vertical / vertical + horizontal


Get Climate And Vibration Combined Test Price
Description Parameters Features

Description of Climate And Vibration Combined Test Chambers


The combined climate and vibration test chambers are suitable for aerospace products, information electronic instrumentation, materials, electrical, electronic products, various electronic components to test its performances in a comprehensive and harsh environment (temperature, humidity, vibration).

Parameter of Climate And Vibration Combined Test Chambers


ModelYTHV-216YTHV-343YTHV-512YTHV-720YTHV-1000
Inner chamber size W×H×D(cm)60×60×6070×70×7080×80×8090×90×90100x100x10
Testing temperature range-70℃,-60℃, -40℃, -20℃, 0℃~150℃, other temperature is available.
Testing humidity range20%RH~98%RH(low humidity10%RH~98%RH或5%RH~98%RH can be customized)
Temp.humi.fluctuation±0.3℃;±0.5%RH
Temp.humi.uniformity±2℃;±3%R 30min
Temp.humi.resolution0.01℃;0.1%RH
Heating&cooling  time ℃/minCustomizable cooling rate requirements
Vibration test table performance
Force3KN,6KN, 10KN, 20KN, 30KN, 40KN, 50KN,etc.
Frequency range5Hz~3000Hz
Vibration directionVertical. vertical + horizontal
Maximum displacement25mm-51mm (p-p)
Maximum velocity2m/s
Maximum acceleration100g(empty load)
Vibration tableCustomized with customer's requirement


Features of Climate And Vibration Combined Test Chambers


  • A comprehensive test environment that simulates three environmental factors in the same chamber.

  • High performance, fast temperature variability.

  • Can be used as a separate temperature/humidity test chamber.
