xenon lamp test chamber

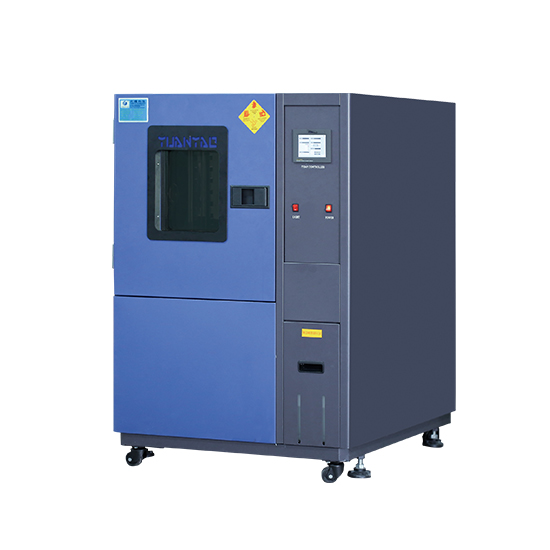

Xenon Lamp Test Chamber

Xenon test chambers Model: YXEL-216 YXEL-343 YXEL-512 YXEL-1000

Xenon test chambers Main Parameters:

  • Full-spectrum xenon arc lamp

  • Temperature and humidity monitoring and control

  • Quartz filter

  • Equip with the multi-direction nozzle for rain test

Get Xenon Lamp Test Chamber Price Xenon Lamp Test Chamber PDF
Description Parameters Features

Description of Xenon Lamp Test Chamber

The Xenon arc test chambers uses Xenon arc lamps that simulate the full sunlight spectrum to reproduce destructive light waves in different environments, providing environmental simulation and accelerated testing for scientific research, product development and quality control.

As a professional manufacturer of aging test chamber, Yuanyao has xenon arc test chambers for sale. With the years of xenon arc chamber manufactuering experience, we take pride in our commitment to meeting the needs of our customers.  If you are looking for high-quality xenon arc test chambers, our product is your perfect choice!

Parameter of Xenon Lamp Test Chamber

Model No.YXEL-216YXEL-343YXEL-512YXEL-1000
Internal chamber size W×H×D (cm)60x60x6070x70x7080x80x80100x100x100
External chamber size W×H×D (cm)120x170x110130x180x120140x190x130150x200x140
Working area temperatureRT~70℃
Temperature fluctuation±2℃
Humidity range80~98%RH、30~98%RH
Rain duration0~99.99H(adjustable)
Rain cycle0~99H(adjustable)
Radiation intensity1000w/m2±200
RadiometerStandard configuration
Distance between sample holder and lamp300~375mm
Sample holder Rotating speed1~5r/min
External chamber materialA3 Steel plate with powder coating
Inner chamber materialSUS#304 stainless steel
Cycling systemSingle-cycle, centrifugal fan, split air duct structure
Control systemTouch screen programmable controller
Protection deviceOverpressure, leakage, phase loss, over-temperature, water shortage
Power supplyAC 3Ψ380V 60/50Hz
Standard deviceLamp 1pcs, gauze 1 pack.
Test standardGB/T14522-2008、 GB16422.2-1999
Customization serviceNon-standard or special requirements can be customized.

Features of Xenon Lamp Test Chamber

  • The Xenon arc test chambers is Equipped with multi-directional nozzles for rain spray test.

  • Rain spray, lighting, temperature, humidity, irradiation intensity, time, turntable speed can be controlled separately.

  • Equipped with a blackboard thermometer to adjust test temperature.
