three zones thermal shock chamber

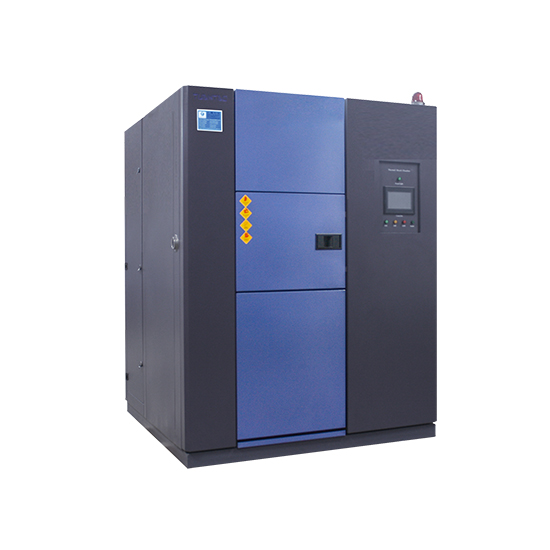

Three Zones Thermal Shock Chamber

Model: YTST-050 YTST-080 YTST-108 YTST-216 YTST-252

Main Parameters:


  • Temperature shock range:-40℃/-55℃/-60℃ ~+150℃

  • Temperature recovery time: 3~5 mins

  • Independent high temp zone, low temp zone and test zone

  • Air type thermal shock test equipment

Get Three Zones Thermal Shock Chamber Price
Description Parameters Features

Description of Three Zones Thermal Shock Chamber


Be used to test the performance of material or products by instant shock under continuous conditions of extremely high temperature and low temperature.


It is applied in electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials, plastics, etc.


Parameter of Three Zones Thermal Shock Chamber


ModelYTST-050YTST-080YTST-108YTST-216YTST-252
Test zone size (W×H×D)36×35×4050×40×4060×40×4560×60×6070×60×60
External chamber size (W×H×D)120×182×150143×195×160151×185×185151×205×200151×215×200
Hot zone temp. range+80℃~+200℃
Cold zone temp range-10℃~-40℃,-10℃~-60℃,-10℃~-70℃
Test zone temp. range-40℃~+150℃,-55℃~+150℃,-60℃~+150℃
Temp. fluctuation±2℃
Temp. recovery time<5min
Exterior materialPainted steel
Internal tankStainless steel plant #304
InsulationPU+Fiberglass  wool
Heating systemStainless steel high temp. heater
Cooling systemCompressor + Finned evaporator + Air(Water) cooled condenser
ControllerTouch LCD ++ SSR + PID
AccessoriesPower test hole (50mm)
Control status indicator
Load shelf (2 freely adjustable)
ProtectionOverheat protection circuit breaker
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
High voltage and low voltage protection
Over temperature protection
Fan overcurrent protection
Power supplyAC 3Ψ380V 60/50Hz
CustomizationSpecial requirements, custom service


Features of Three Zones Thermal Shock Chamber


  • Programmable LCD touch screen temperature controller, support multiple languages.

  • Test area can be separately tested for low temperature or high temperature.

  • Temperature recovery time: 3~5 min.
