high frequency electromagnetic vibration test machine

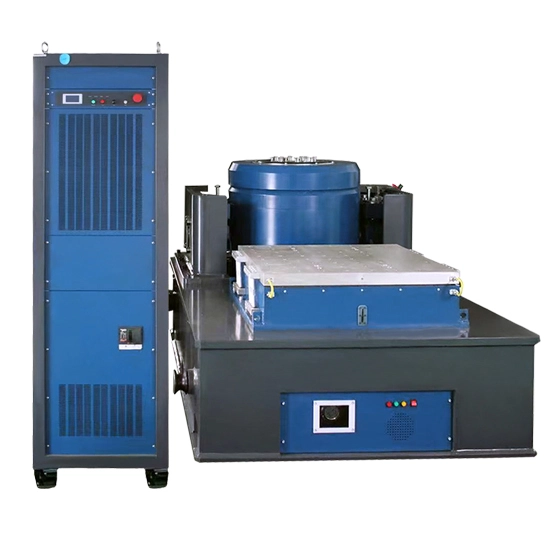

High Frequency Electromagnetic Vibration Test Machine

Model: YEV-300 YEV-600 YEV-1000 YEV-2000 YEV-3000

Product Performance


  • Force:300kgf / 600kgf / 1000kgf / 2000kgf / 3000kgf

  • Max acceleration: 100g(without load)

  • Max displacement: 51mm

  • Max speed: 1.6/1.8/2 m per minute


Get High Frequency Electromagnetic Vibration Test Machine Price
Description Parameters Features

Description of High-Frequency Electromagnetic Vibration Test Machine


Electromagnetic high-frequency shakers are used to simulate vibration conditions for structural analysis and testing assemblies to assure the ruggedness and reliability of the products to withstand the vibration exposure of a life cycle.

The electromagnetic vibration test machine is widely used in national defense, aviation, aerospace, communications, electronics, automotive, home appliances, and other industries.

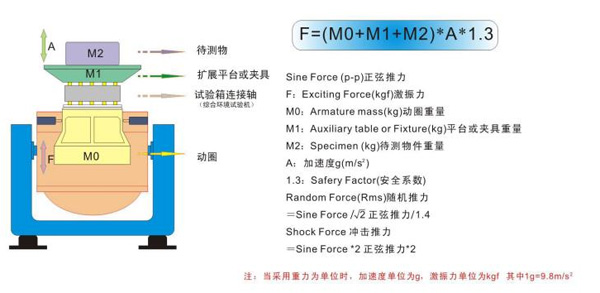

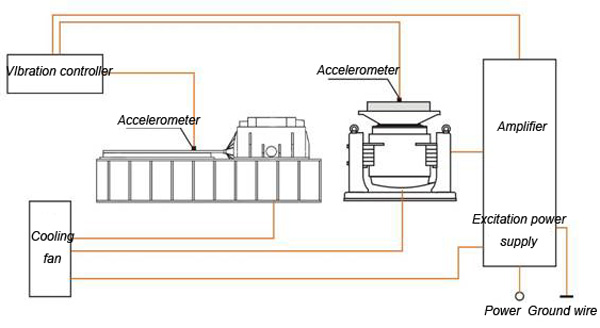

Here is the formula and drawing of Yuanyao electromagnetic vibration test machine.


Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2    D=A/0.002F2      F=M(kg) ×A(g)





Parameter of High-Frequency Electromagnetic Vibration Test Machine


ModelYEV-300YEV-600YEV-1000
Rate sine force(N)294058809800
Radom force(N)294058809800
Shock force(BMX)58801176019600
Frequency(Hz)5-45005-30005-3000
Max acceleration without load (m/s2))9809801176
Rated speed(m/s)1.61.82
Max.displacement(MMF-p)252551
Weight of moving parts(kg)2.75.58.4
Max load(kg)120200120
Consumption power(KVA)49.720
Power requirements3φ380V, 50Hz
Vibration controller(optional)YEVC-2,YEVC-3,REVC-2,REVC-3
Cooling wayAir cooling
Continuous working time8 h
Protective functionGrid overvoltage protection
Module overheat protection
System default protection
Grid Undervoltage protection
Output overcurrent protection
Output overvoltage protection
Substrate overheat protection
Module overcurrent protection
Leakage protection


Features of High-Frequency Electromagnetic Vibration Test Machine


  • The base of the machine is made from high-quality material, easy to install and run smoothly.

  • Multi-function: frequency modulation, frequency sweeping,programmable, amp;otude modulation, time control,etc.

  • Strong anti-magnetic and anti-interference ability.
