Model: YSDT-500-C YSDT-1000-C YSDT-1500-C
Product Performance
Comply with IEC-60529 IP5X IP6X, JISD 0207 & US military standards
Top-down, top dusting mode and bottom-up, bottom dusting mode
Uniform synchronous air hammer vibration dust device
Dust automatic dehumidification system

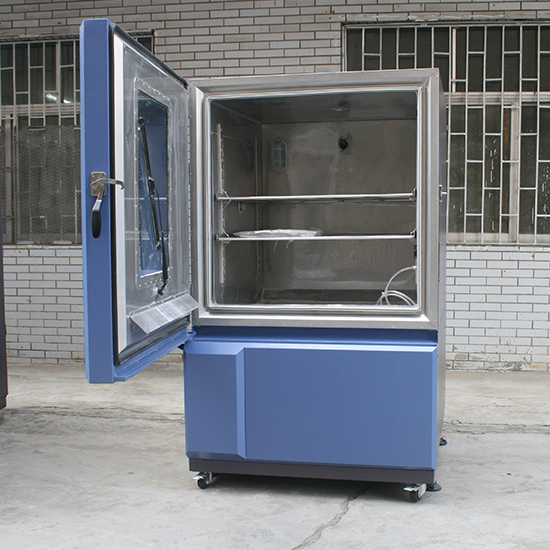

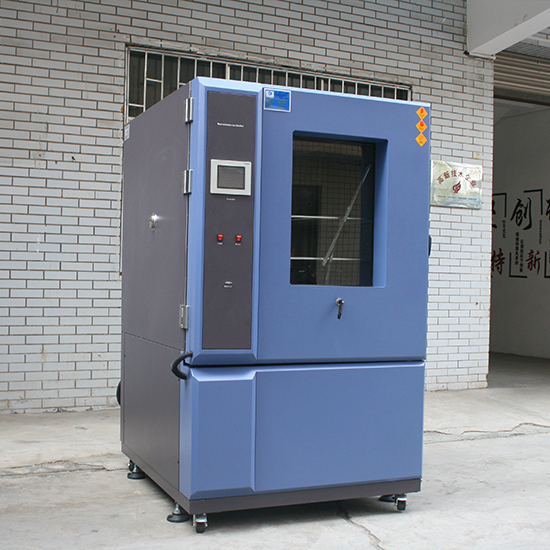

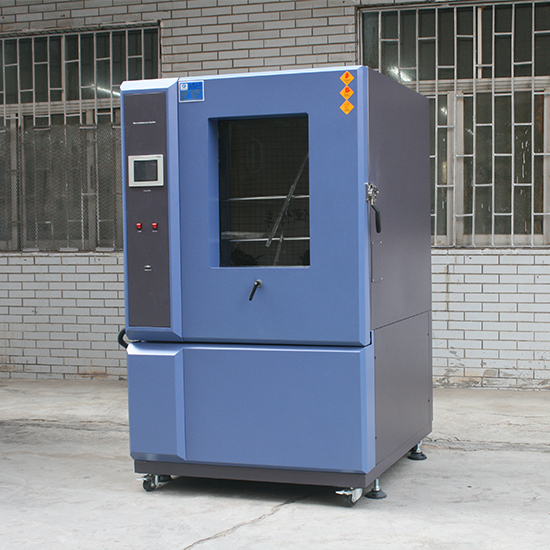

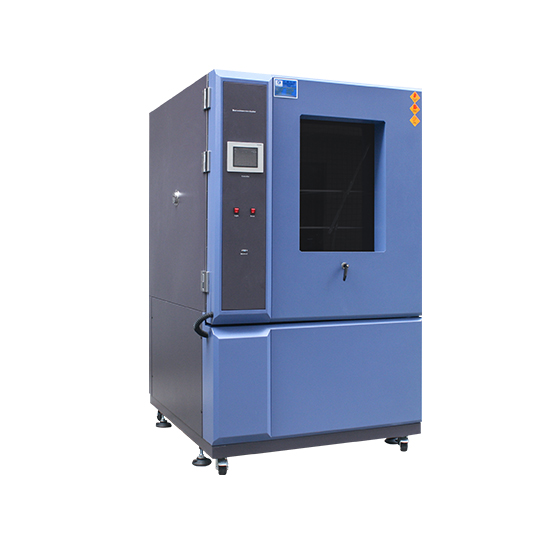

The sand and dust test chamber is used to evaluate the ability of the equipment to withstand the effects of dust that may block openings, seep into cracks, gaps, bearings and joints, or reduce performance due to wear or blockage of sharp edges of large sand. Dust test chambers can be used to evaluate all mechanical, optical, electrical, electronic, electromechanical and electrochemical devices that may be exposed to dry sandblasting, dusting atmospheres, or dusting conditions.
| Model No. | YSDT-500-C | YSDT-1000-C | YSDT-1500-C | |
| Inner chamber size W×H×D(cm) | 80×80×80 | 100×100×100 | 100×100×150 | |
| Exterior chamber size W×H×D(cm) | 130×170×120 | 150×190×140 | 150×190×190 | |
| Time setting range | 0～999h adjustable | |||
| Temperature setting range | RT+10~50℃ | |||
| Test dust | Talcum powder | |||
| Dust usage | 2～4kg/m³ | |||
| Vacuum degree | 0～10.0KPa, adjustable | |||
| Dust reduction method | Free dust falling | |||
| Controller | The programmable touch screen controller | |||
| Vacuum system | Equipped with pressure gauge, air filtration, pressure regulation, connecting pipe, vacuum pump | |||
| Circulation fan | Low noise, multi-blade centrifugal fan | |||
| Protective device | Leakage protection, short circuit protection | |||
| Dust heating system | Stainless steel heating tube | |||
| Material | Outer chamber material | Cold-rolled sheet with powder coating | ||
| Inner chamber material | SUS#304 stainless steel plate | |||
| Other components | Wiper, caster adjuster | |||
| Power supply | AC 1Ψ 220V; 3Ψ 380V 60/50Hz | |||
| Customization service | Non-standard or special requirements can be customized. | |||
Comply with IEC 60529, JISD 0207, and US military standard.
Size can be customized as per customer's requirements.
