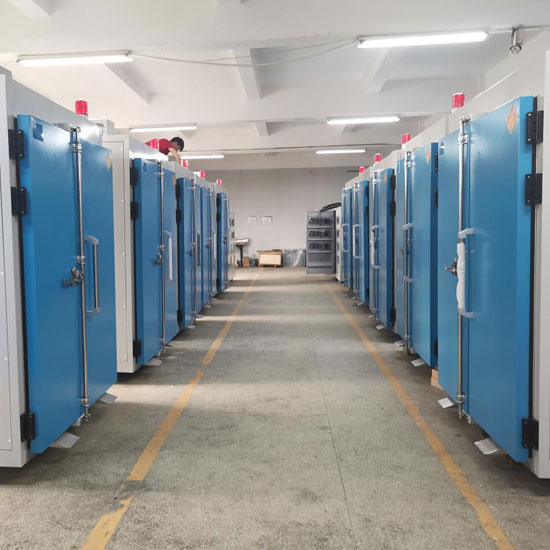

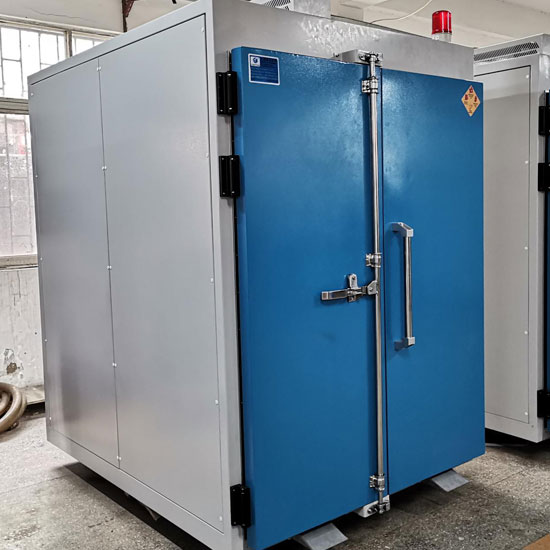

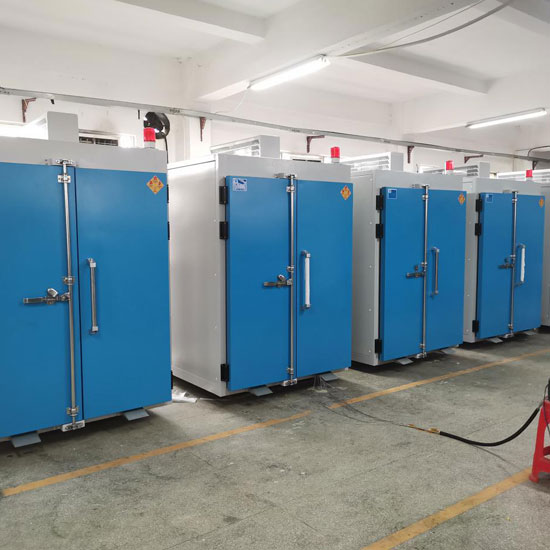

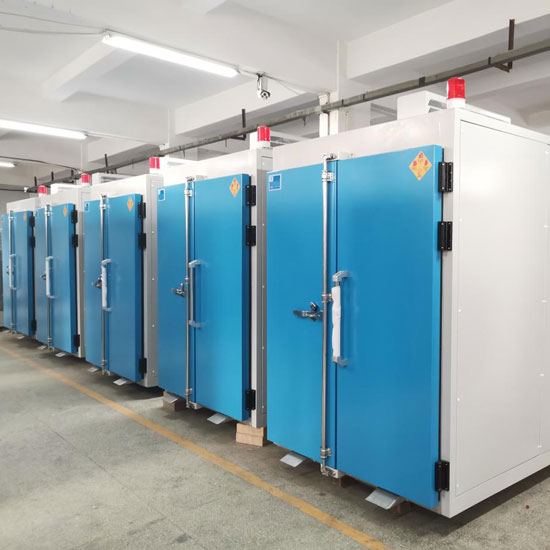

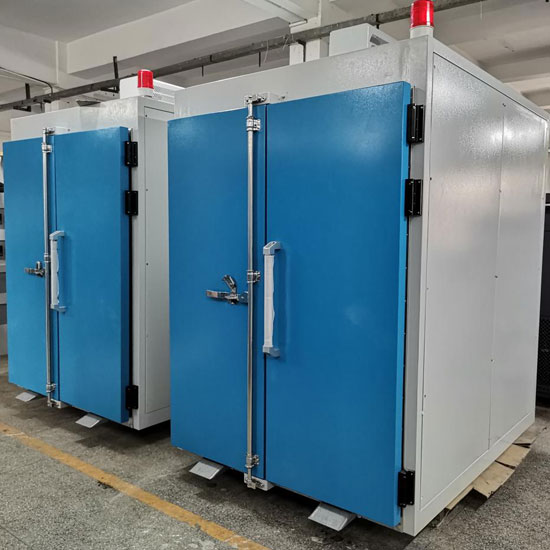

Coating Parts High Temperature Drying Oven

Coating Parts High Temperature Drying Oven

Model: YPO-3155-120

Product Performance


  • Temperature range: RT+25℃~120℃

  • Temperature fluctuation: ±0.3℃

  • Temperature uniformity: ±1%℃

  • Heat-up time: 15 min

Get Coating Parts High Temperature Drying Oven Price
Description Parameters Features

Description of Coating Parts High Temperature Drying Oven

Precision ovens can provide a stable high-temperature space for industrial materials, which are widely used in the coating drying process of automobiles, electronics, plastics, molds and aerospace industries. Industrial materials absorb moisture in the air when they are placed in the natural environment , so needed to cover the surface of the sample with a protective paint to maintain the aesthetics of the sample and improve the ability of corrosion resistance. If it is not baked, the surface of the product will have cracks, corrosion or bubbles. The baking process is divided into three categories, the first type is low-temperature baking paint from 70°C to 120°C, the second type is medium-temperature baking paint from 140°C to 180°C, and the third type is high-temperature baking paint, the curing temperature is 280°C- 400°C.


Parameter of Coating Parts High Temperature Drying Oven

Model No.YPO-3155-120
Internal chamber size (W×H×Dmm)

1160*1600*1700

External chamber size (W×H×Dmm)1460 *2195 * 1931
Temperature rangeRoom temperature+25℃~120℃
Temperature fluctuation±0.3℃
Temperature uniformity±1%℃
Temperature resolution0.1℃
Heating up time15 minutes
External chamber materialCold-rolled sheet + Powder coating
Interior chamber material

SUS#304 stainless stee

Insulationfiberglass wool
Wind circulation systemCentrifugal fan air circulation system
Heating systemStainless steel high-speed heater
Control systemButton type Digital controller
ComponentsControl status indicator, loading shelf(2 pcs, height adjustable)
Safe devicePhase Sequence protection, overtemperature, overcurrent, overload protection
Power supply

AC 3Ψ 380V 60/50Hz

Customization serviceNon-standard or special requirements can be customized.




Features of Coating Parts High Temperature Drying Oven

  • Digital display controller or touch screen controller.

  • Heating method is by hot air circulation, which ensures rapid temperature rise and uniform temperature distribution.

  • Temperature range can be customized up to 500℃.

  • Adjustable heating wind speed helps to stabilize oven internal uniformity.

  • Inner box with slope and track design
