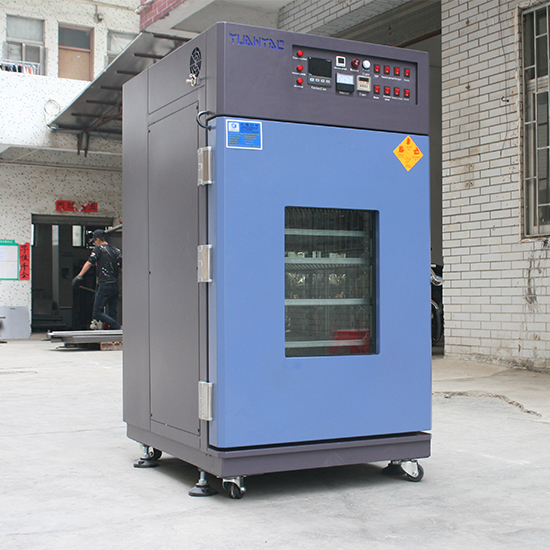

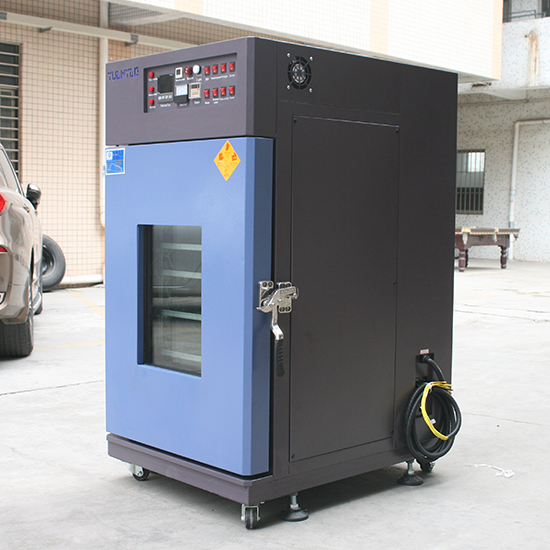

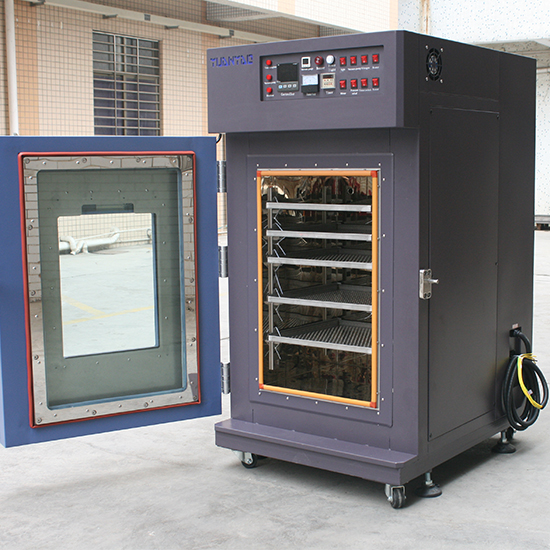

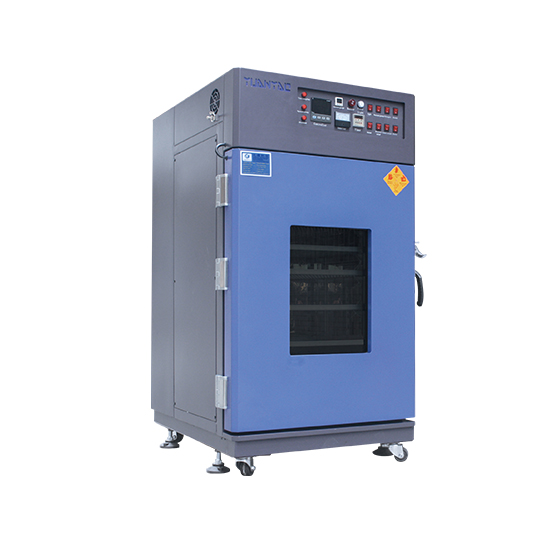

Laboratory And industrial Vacuum Oven

Laboratory And industrial Vacuum Oven

Model: YVO-072 YVO-270 YVO-480 YVO-600 YVO-720 YVO-1000

Product Performance


  • Temperature range: RT+25℃~200℃/300℃/400℃

  • Vacuum range: normal pressure to 3kpa

  • Temperature fluctuation: ±0.3℃

  • With vacuum pump


Get Laboratory And industrial Vacuum Oven Price
Description Parameters Features

Description of Laboratory And industrial Vacuum Oven


Vacuum oven is also called vacuum drying oven. It is used to dry products in a vacuum environment. Widely used in the chemical industry, FPC board, photoelectricity, battery, electronics, medicine and other industries.


Vacuum oven consists of body, inside oven, vacuum system and heating system.

Material of structure:


The inner box material is made from a stainless steel plate with high-temperature resistance and anti-corrosion, which is made by argon-arc welding and sealing. Then make strong bone reinforcement, anti-bending and anti-deformation. The external structure was made from steel plate with powder coating process. It adopts advanced insulation cotton, the inner liner is directly heated, and the surface temperature of the machine is low. The high temperature resistant hot glue is tight, environmental protection and pollution-free, and the strong type of door buckle is adopted.

Heating system and control system of vacuum drying oven:


1. The heating material of vacuum ovens is a high-temperature resistant heater;
2. Temperature setting range: RT + 25 ℃ ~ 200 ℃ / 300℃/ 400℃
3. Controller: digital type controller and touch screen type controller are optional. If you want to make some programs, touch screen controller is suitable. Both temperature and vacuum degree can be set on the controller.

Vacuum system of oven:


The oven is equipped with an imported vacuum pump, stable performance and fast vacuum. If customers don't need a vacuum pump, we can just make chamber without pump as long as customer tell us their requirement.

Protection system


1. Under-phase protector.
2. Two-way over-temperature protector, automatic alarm and shutdown function when temperature overshoot.
3. The temperature has reached the timing and shutdown alarm function.
4. Leakage protection function.
5. Vacuum pump overcurrent protection
6. Heater mechanical protection
7. Temperature sensor disconnection alarm function
7. No fuse control loop protection switch.

Parameter of Laboratory And industrial Vacuum Oven


Model No.YVO--072YVO--270YVO--480YVO--600YVO--720YVO--1000
Internal chamber size (W*H*D) cm40×45×4060×90×5080×100×60100×100×60100×120×60100×100×100
External chamber size (W*H*D) cm72×116×5693×163×67110×172×77130×172×77116×170×116116×150×166
Temperature rangeRT+25℃~200℃(Max. 400℃)
Vacuum degreeNormal-pressure to 3K Pa (Min 5 Pa can be customized)
Temp fluctuation±3%℃
Control resolution0.1℃
Heat-up timeRT+25~200℃<90min
RT~400℃<120min
External chamber materialCold-rolled sheet + powder coating
Interior chamber materialSUS#304 Stainless steel
Insulationfiberglass wool
Heating systemStainless steel high-speed heater
Control systemButton type digital display controller
Vacuum systemVacuum pump + solenoid valve + vacuum gauge
Power supplyAC 3Ψ 380V 60/50Hz
Customazition serviceNon-standard or special requirements can be customized.


Parameter of Laboratory And industrial Vacuum Oven

  • Digital display type controller or programmable touch screen controller.

  • Inner chamber adopts 5mm thickness stainless steel.

  • Adopt 100mm thickness glass wool as insulation, surface temperature of external chamber doesn’t exceed room temperature +10℃.

  • Adopt an imported vacuum pump for a fast absolute vacuum.
