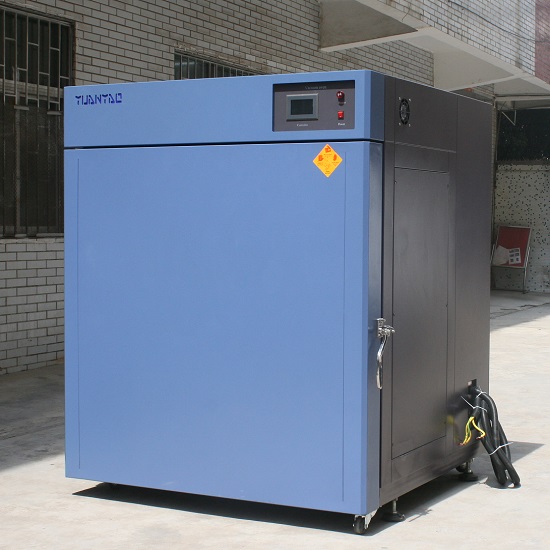

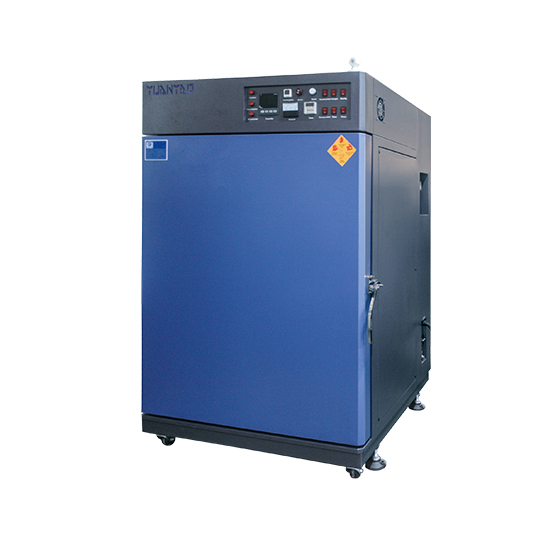

Vacuum Nitrogen Drying Oven

Vacuum Nitrogen Drying Oven

Model: YPON-072 YPON-270 YPON-480 YPON-600 YPON-720 YPON-1000

Product Performance


  • Temperature range: RT+25℃~200℃/300℃/400℃

  • Vacuum range: normal pressure to 3kpa

  • Temperature fluctuation:±0.3℃

  • Oxygen concentration:0-1500pphm


Get Vacuum Nitrogen Drying Oven Price
Description Parameters

Description of Vacuum Nitrogen Drying Oven


Widely used in dust-free drying special process requirements of precision electronic components, photoresist curing and electronic ceramic materials. It is suitable for touch screen, wafer, LED, PCB board, ITO glass and other precision electronics, solar energy, new materials and other industries.

Parameter of Vacuum Nitrogen Drying Oven


Model No.YPON-072YPON-270YPON-480YPON-600YPON-720YPON-1000
Inner chamber size (W×H×Dcm)40×45×4060×90×5080×100×60100×100×60100×120×60100×100×100
Exterior chamber size (W×H×Dcm)Non-standard sizes can be customized.
Temperature rangeRT+25℃~200℃(300℃)
Vacuum rangeAtmospheric pressure~-98KPa
Temp.fluctuation±0.3℃
Temp.resolution0.1℃
Oxygen concentration0-1500PPHM
Heat up time30min
Exterior chamber materialCold-rolled sheet + powder coating
Inner chamber materialSUS#304 stainless steel, 5.0mm thickness.
Insulationfiberglass wool
Wind circulation systemCooling fan
Heating systemStainless steel high-speed heater
Controlling systemKorea Samwontech controller
Nitrogen systemFlowmeter + Pressure meter + Oxygen analyzer
Vacuum systemEquipped with a vacuum pump
Other componentsCable port(dia.50mm), control indicator, loading shelf (2pcs, height adjustable)
Safety devicesOverheat protection, control system overload protection, overload indicator.
Power supplyAC 3Ψ 380V 60/50Hz
CustomizationNon-standard or special requirements can be customized.
