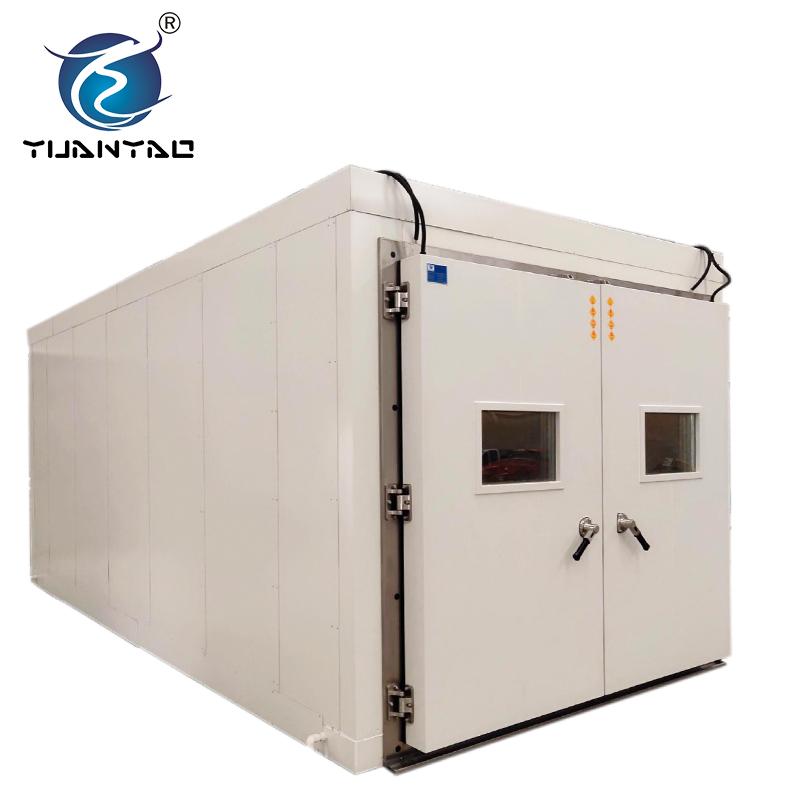

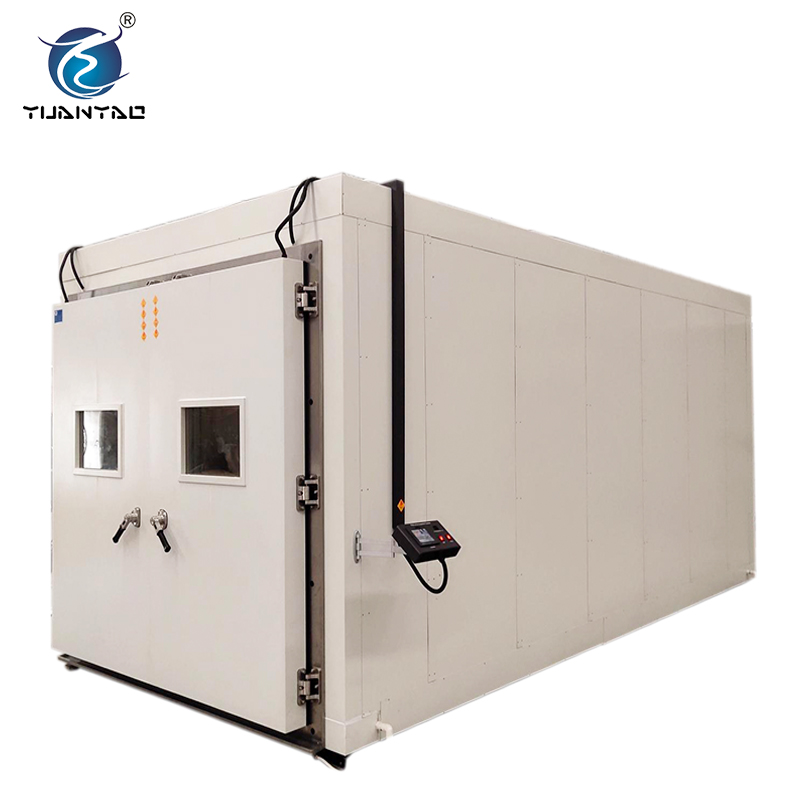

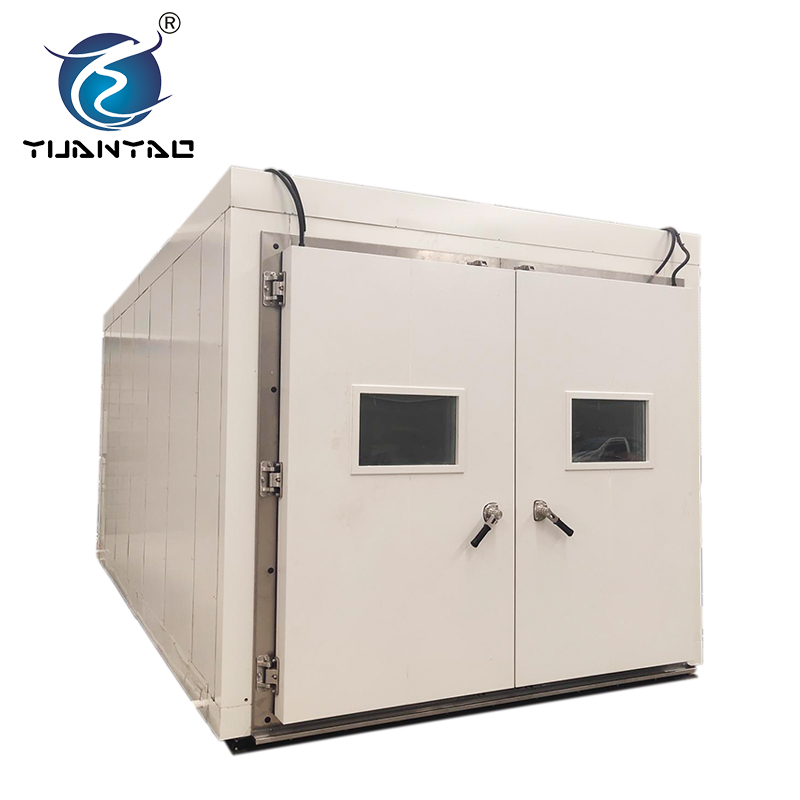

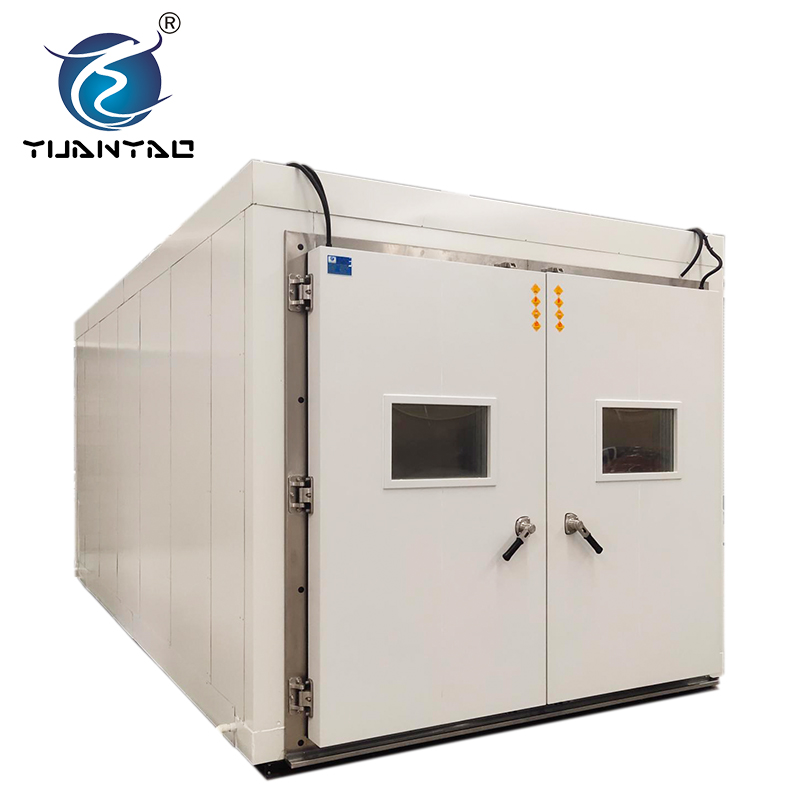

Walk in Climate Chamber

Walk In Climate Chamber

Model: YWER-42000

Description Parameters Features

Description of Walk-In Climate Chamber

Walk In Climate Chamber, also called walk in environmental test chambers or walk in temperature humidity chamber, is used to do accelerated temperature and humidity environmental testing, alternating or constant damp heat test, and high and low-temperature routine tests and low-temperature storage for large-scale parts, semi-finished or finished products, electronic components, automotive, rubber, plastics, pharmaceutical industry, aerospace technology, military technology and communications equipment, etc.

As a professional walk in environmental chamber supplier, Yuanyao has high-quality Walk In Climate Chamber for sale.  Yuanyao's Walk In Climate Chamber(Walk In Temperature Humidity Chamber) is the perfect test site for everything from testing against humidity, temperature, and various climate conditions. With the years of Walk In Climate Chamber manufacturing experience, we take pride in our commitment to meeting the needs of our customers. Yuanyao is your reliable walk in environmental chamber supplier, feel free to contact us and get walk in environmental test chamber price!

Parameter of Walk-In Environmental Test Chambers

Inner chamber sizeW×H×D(mm)Non-standard
Exterior chamber sizeW×H×D(mm)
Temperature range0℃;-20℃;-40℃;-60℃,-70℃~+70℃(+80℃)
Humidity range30% RH~95%RH
Temp.Humi fluctuation±0.3℃;±0.5%RH
Temp.Humi uniformity±3℃;±5%RH
Indication ResolutionTemperature:0.01 humidity:0.1%RH
Heat-up and  Cool-down timeHeat-up:2℃/min(Average),cool-down time 1℃/min(Average)
Air circulation systemCentrifugal fan air circulation system
Heating systemSUS#Stainless steel high-speed heater
Humidification systemElectrothermal steam humidification
Refrigeration systemCompressor + Finned evaporator + Air(Water) cooled condenser
Dehumidifying systemdew point dehumidification method
Controlling systemTouch screen controller+SSR+PID
Exterior chamber materialCold-rolled plate + Powder coating
Interior chamber materialSUS#304 Stainless steel
Insulation materialPU +fibergalss wool
componentsVacuum glass observation window
Test hole (50mm)
Control status indicator
Interior light
Overheat protection circuit breaker
Safety protection deviceHumidification system overheat protection
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
Water shortage protection
High voltage and low voltage protection
Over-temperature protection
Water supply delay protection
Fan overcurrent protection
Power supplyAC 3Ψ380V 60/50Hz Power supply can be customized
Customization serviceNon-standard or special requirements are all welcome

Features of Walk In Temperature Humidity Chamber

  • Programmable LCD touch screen temperature controller, support multiple languages.

  • Automatic replenishment function.

  • Access to PC remote control and monitoring.

  • Water or air cooling.

  • Custom service.

  • Door with a large view window, able to observe the test status of the test product.
