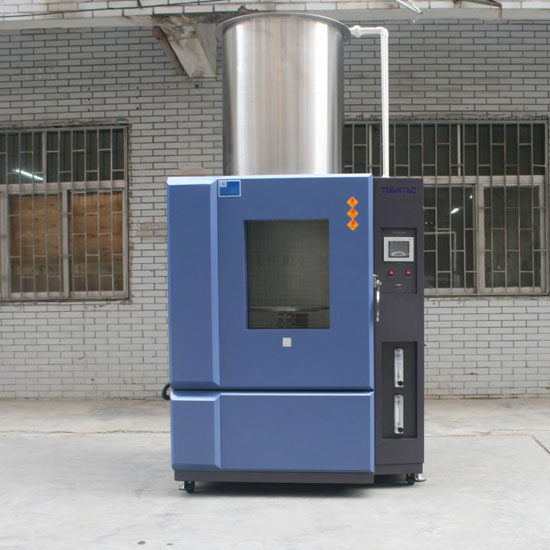

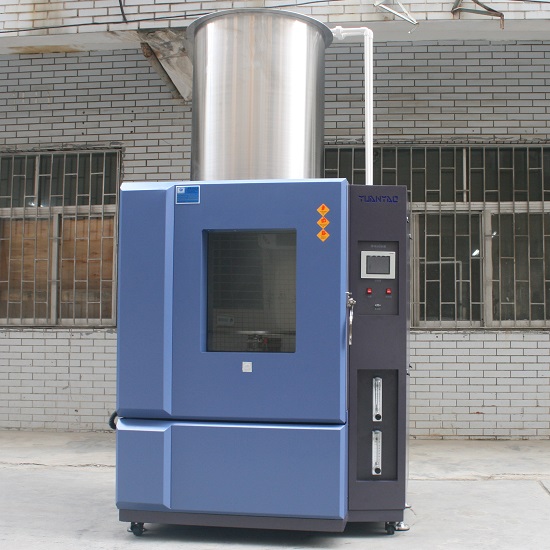

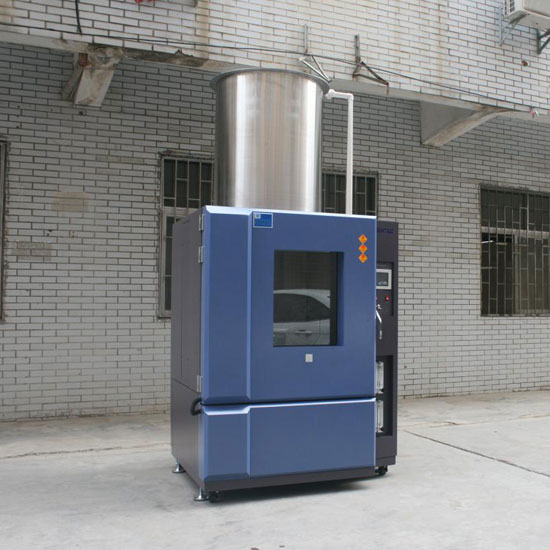

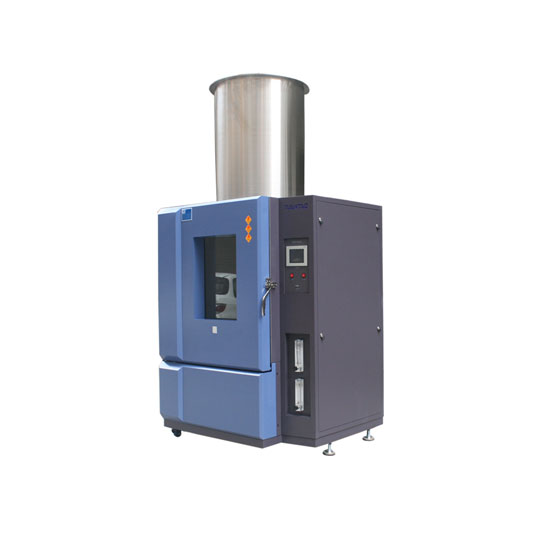

Model: YSRT-1000
Main Parameters:
Comply with IEC-60529 IPX6K, JISD 0203 & US military standards
Water pressure circulation test
Waterproof plug, suitable for sample power on test
IPX6K in one chamber or separately install in one room
IPX6K test waterproof chamber has a higher waterproof level than IPX5 waterproof test chamber and IPX6 waterproof chamber level of pressure.
Based on protection grade IPX6K waterproof chamber simulates the outdoor raining climate to do the waterproof performance test, determine the products reach the corresponding protection grade or not, so that product design, research and development and factory inspection.
IPX6K is a high-pressure water ingress protection test level defined in ISO 20653 (Road vehicles – Degrees of protection), used mainly for automotive and industrial equipment.
According to ISO 20653, the IPX6K test conditions include:
Water pressure: approximately 1000 kPa (10 bar / 145 psi)
Water flow rate: ~14–16 L/min
Spray distance: about 2.5–3 meters (varies by test setup)
Water type: high-pressure jet, not immersion
Test purpose: ensure enclosure has no harmful water ingress under strong water jets
This is a more severe version of IPX6, designed for vehicle components exposed to road spray, cleaning systems, and harsh outdoor environments.
IP69K is considered one of the highest ingress protection ratings in the IP system, especially under ISO 20653 and DIN 40050-9 extensions.
Model | YSRT-1000 |
Internal chamber size | 1000*1000*1000 mm (W*H*D) |
External chamber size | 1450*2000*3600 mm (W*H*D) |
Interior chamber material | SUS#304 stainless steel |
Spray nozzle diameter & jet distance(IPX5-IPX6) | 6.3mm(IPX5), 12.5mm(IPX6); 2.5~3m |
Water flow and jet distanceIPX5-IPX6） | 12.5L±0.625L/min(IPX5), 100±5L/min(IPX6) |
Water pressure: | 50~150 Kpa |
Standard configuration | 1 sample tray |
Power supply | AC 3Ψ 380V 60/50Hz |
1. Touch screen controller.
2. Sample power-on test.
3. IPX6K tests can be performed in one chamber.
4. Water can be recycled with water pressure.
