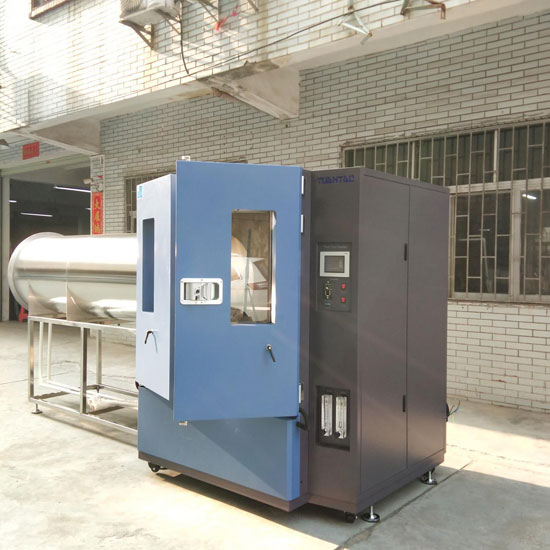

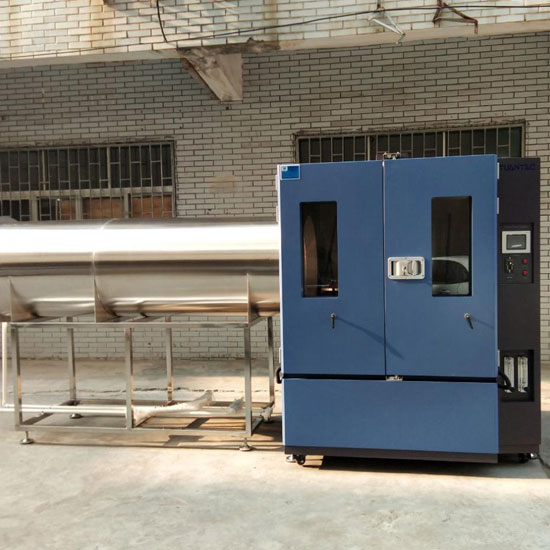

Water Test Chamber

Water Test Chamber

Model: YSRT-1728

Product Performance


  • Comply with IEC-60529 IPx9k, JISD 0203 & US military standards

  • Water circulation

  • Waterproof plug, suitable for sample power on test

  • IPX9K in one chamber or separately install in one room


Get Water Test Chamber Price
Description Parameters Features

Description of water spray test chamber

Ipx9k high pressure water spray test chamber mainly used to test passenger cars, buses, tractors, motorcycles and other vehicles and their components. Under the high pressure / steam jet cleaning process conditions, the physical and other related properties of the product are tested. After the test, the performance of the product is judged by the verification to meet the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.


Parameter of water test chamber

Internal chamber size

1160*1600*1700 mm (W*H*D)

External chamber size

1460 *2195 * 1931 mm (W*H*D)

Interior chamber material

SUS#304 stainless steel

Nozzle distance

100-200mm (adjustable)

Nozzle angle

0°、30°、60°、90°(Vertical direction)

Nozzle quantity

4 pieces

Water pressure:

8000~10000 Kpa

Turntable rotation speed

4-10r/min ( adjustable)

Standard configuration

1 sample tray

Power supply

AC 3Ψ 380V 60/50Hz


Features of water test chamber

1. Touch screen controller.

2. Four fan-shaped nozzles are evenly distributed within 90°of the right side of the inner chamber, strictly in accordance with the ISO20653 standard

3. Spray water temperature: Normal temperature (25℃); 80 ± 5℃

4. The use of high-quality stepper motor, speed and angle (Adjustable)
