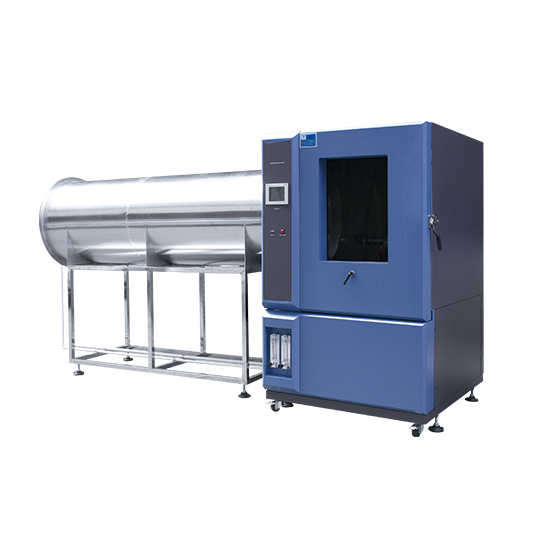

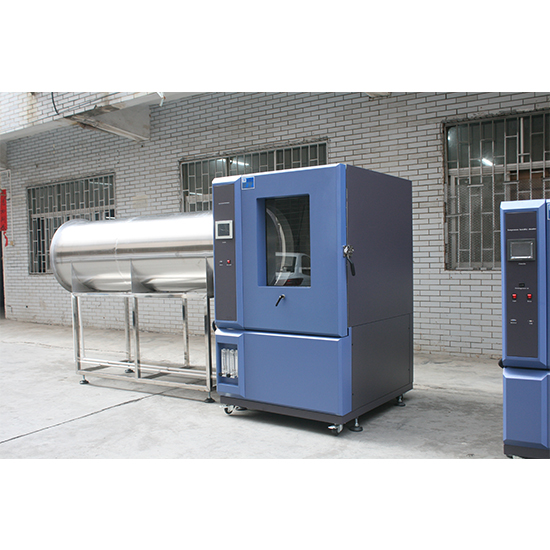

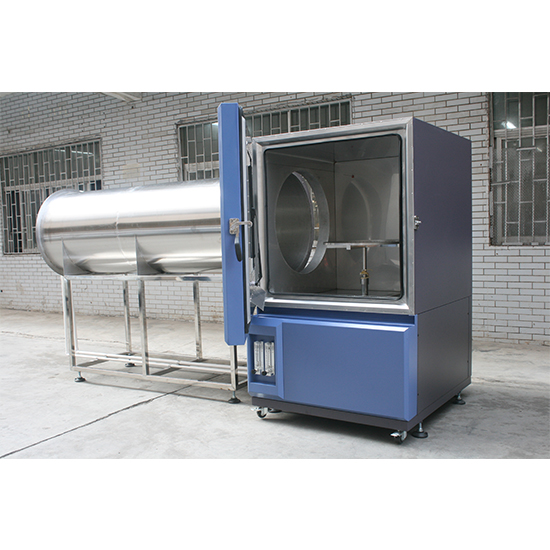

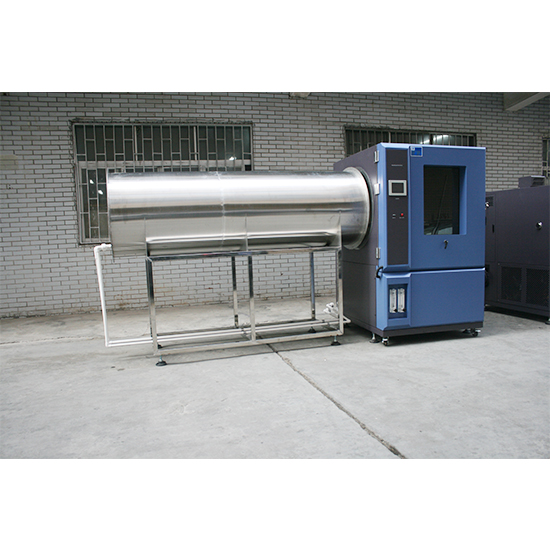

Water-poof Test Chamber

Water-proof Test Chamber

Model: YSRT-512 YSRT-1000 YSRT-1728

Main Parameters:

  • Comply with IEC-60529 IPx1~ IPx8, JISD 0203 & US military standards

  • Water circulation

  • Waterproof plug, suitable for sample power on test

  • IPX1~IPX6 in one chamber or separately install in one room

Get Water-proof Test Chamber Price
Description Parameters Features

Description of Water-proof Test Chamber

Based on protection grade, simulates the outdoor raining climate to do the waterproof performance test, determine the products reach the corresponding protection grade or not, so that product design, research and development and factory inspection. It is mainly for electrical and electronic products, LED lighting products, lamps and lanterns, electrical cabinet, communication, digital equipment and vehicles.

Parameter of Water-proof Test Chamber

Model No.YSRT-512YSRT-1000YSRT-1728
Inner chamber size W×H×D(cm)80×80×80100x100x100120x120x120
Exterior chamber size  W×H×D(cm)125×180×340145x200x360165x220x380
Rain drop area (IPX1-IPX2)60x60cm60x60cm, 80x80cm80x80cm, 100x100cm
Swing pipe radius(IPX3-IPX4)30cm40cm50cm
Rotary table diameter&load50cm,50KG60cm,50KG80cm,50KG
Spray nozzle diameter & jet distance(IPX5-IPX6)6.3mm(IPX5), 12.5mm(IPX6); 2.5~3m
Water flow and jet distanceIPX1-IPX6)1~1.5mm/min(IPX1), 3~3.5mm/min(IPX2); 1.1L/min(IPX3),1.8L/min(IPX4); 12.5L±0.625L/min(IPX5), 100±5L/min(IPX6)
Rotating speed of rotary table1~5r/min,ajustable
MaterialInner chamberSUS#304 SUS#304 stainless steel plate
External chamberCold-rolled sheet + powder coating
Other componentsIndoor light, wiper, caster adjuster
Power supplyAC 3Ψ 380V 60/50Hz
Customization serviceNon-standard special requirements can be customized.

Features of Water-proof Test Chamber

  • Sample power-on test.

  • IPX1-IPX6 tests can be performed in one chamber.

  • Water can be recycled.
