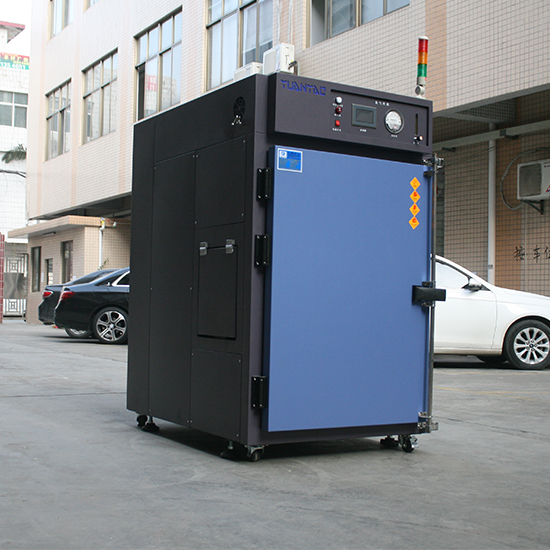

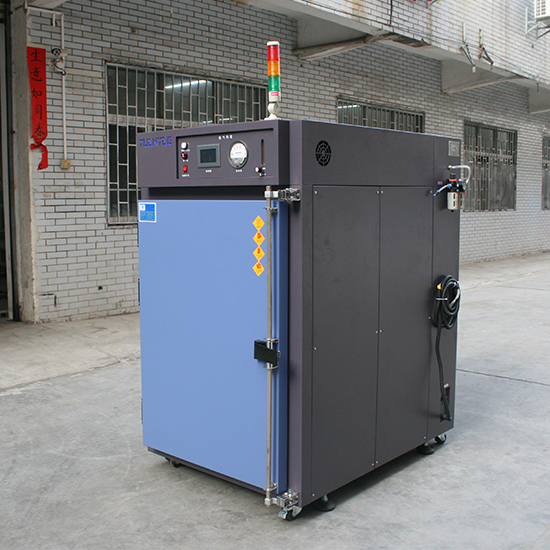

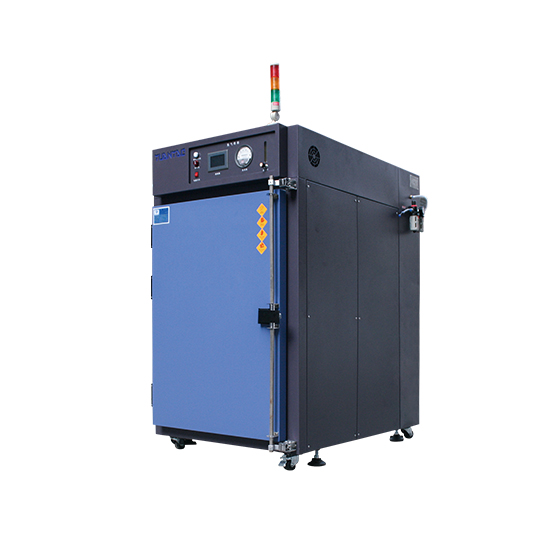

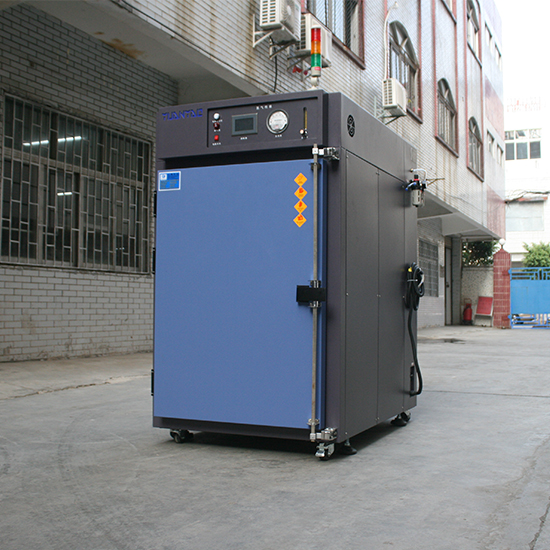

Name: Standard Type Nitrogen Drying Oven
Brand: Guangdong Yuanyao Test Equipment Co.,Ltd.

Description Parameters Features

Description of Nitrogen Drying Oven

Widely used in chemical laboratory, electric laboratory, electronic communication, plastic, cable, electroplating, hardware, electricity, plastic products, molding, shoe material, spraying, printing, medical, aerospace and universities and other industries.

Parameter of Nitrogen Drying Oven

Model No.	YNO-072	YNO-270	YNO-480	YNO-600	YNO-720	YNO-1000
Inner chamber size (W×H×Dcm)	40×45×40	60×90×50	80×100×60	100×100×60	100×120×60	100×100×100
Exterior chamber size (W×H×Dcm)	72×116×56	93×163×67	110×172×77	130×172×77	116×170×116	116×150×166
Temperature range	RT+25℃～200℃(300℃)
Temp.fluctuation	±0.3℃
Temp.uniformity	±1%℃
Temp.resolution	0.1℃
Oxygen concentration	0-2000 PPM
Heat up time	30 minutes
Exterior chamber material	Cold-rolled sheet + powder coating
Inner chamber material	SUS#201 stainless steel plate (Adopt SUS#304 stainless steel when temperature>200℃)
Insulation	fiberglass wool
Wind circulation system	Centrifugal fan air circulation system
Heating system	Stainless steel high-speed heater
Controlling system	Button type digital display controller
Nitrogen system	Flowmeter + Pressure meter (oxygen analyzer is optional)
Other components	Control status indicator, loading shelf (2 pcs, height adjustable)
Safety devices	Phase sequence protection, overheat protection, overcurrent protection, overload protection.
Power supply	AC 3Ψ 380V 60/50Hz
Customization	Non-standard or special requirements can be customized.

Features of Nitrogen Drying Oven

Controller: Digital display controller (Samwon ST590E-00) or touch screen programmable controller
Heating method is by hot air circulation.
Glass wool insulation, the temperature of the outer chamber shall not exceed room temperature +10℃
