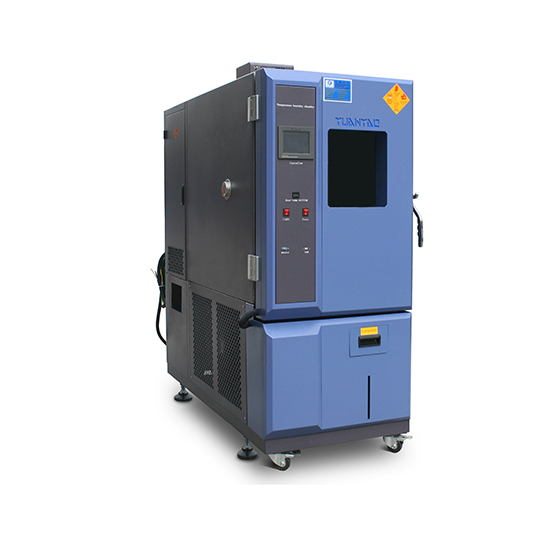

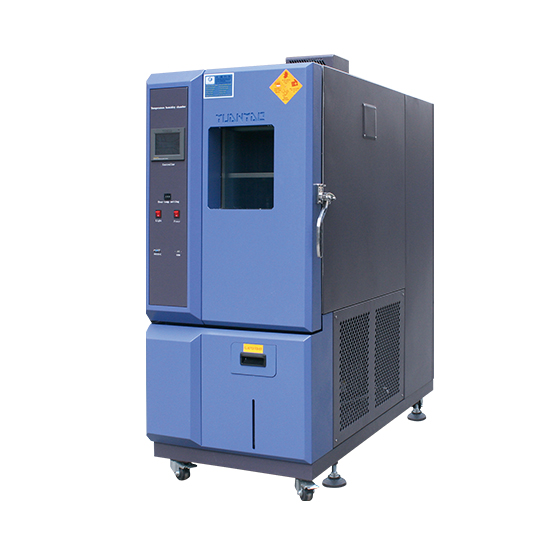

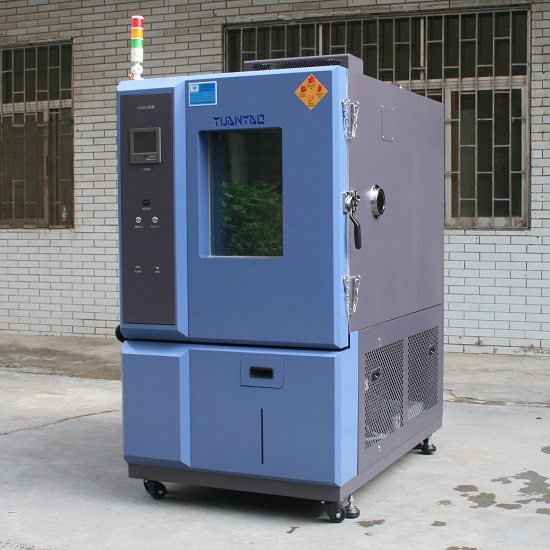

Model: YTH-080 YTH-150 YTH-225 YTH-408 YTH-800 YTH-1000
Main Parameters:
Temperature: 0℃/-20℃/-40℃/-80℃ ~ +150℃
Humidity: 20%～98% RH (lower humidity is optional)
Heat-up speed: average 3℃/min
Cool-down speed: average 1℃/min
A programmable temperature humidity chamber is designed to simulate different temperature and humidity conditions for evaluating product reliability, durability, and environmental adaptability. Also known as a temperature and humidity chamber or environmental test chamber, it provides precise control of temperature, humidity, and testing cycles for various industrial applications.
Yuanyao standard programmable temperature humidity chambers are widely used for testing electronic components, automotive parts, plastics, materials, and other products that require stable climate simulation. With accurate temperature control, uniform humidity regulation, and programmable test procedures, the chamber helps manufacturers identify potential performance issues and improve product quality.
For different industrial heating and thermal processing requirements, Yuanyao also provides solutions such as industrial drying ovens for applications including drying, curing, and aging processes.
A temperature humidity chamber creates controlled environmental conditions through integrated heating, cooling, humidification, and dehumidification systems. The programmable controller adjusts temperature and humidity levels according to preset test parameters, allowing products to be tested under different climate conditions.
During operation, the chamber maintains stable temperature and humidity distribution through an air circulation system. This allows manufacturers to perform environmental simulation tests, such as high-temperature testing, low-temperature testing, humidity exposure testing, and temperature cycling tests, to evaluate product reliability and service life.
Electronics and Electrical Products
Temperature humidity chambers are commonly used for testing electronic components, electrical products, and precision devices to evaluate performance under different temperature and humidity conditions.
Automotive Components
In automotive industries, environmental test chambers can be used to evaluate the reliability of vehicle components and materials under changing climate conditions.
Materials and Industrial Products
The chamber is also suitable for testing materials such as plastics, rubber, and coatings to analyze aging resistance and environmental stability.
| Model No. | YTH-080 | YTH-150 | YTH-225 | YTH-408 | YTH-800 | YTH-1000 | |
| Inner chamber size(cm) | 40×50×40 | 50×60×50 | 60×75×50 | 80×85×60 | 100×100×80 | 100×100×100 | |
| Exterior chamber size (cm) | 60x172x120 | 70x174x130 | 70x172x181 | 100x182x197 | 120x197x197 | 120x197x217 | |
| Temperature range | -70℃，-60℃, -40℃, -20℃, 0℃~150℃，other temperature can be customized | ||||||
| Humidity range | 20%RH～98%RH(10%RH～98%RH 5%RH～98%RH)can be customized) | ||||||
| Temp.humi.fluctuation | ±0.3℃；±0.5%RH | ||||||
| Temp.humi.uniformity | ±2℃；±3%RH (empty load, 30 minutes after stablization) | ||||||
| Temp.humi.resolution | 0.01℃；0.1%RH | ||||||
| Heating&cooling time ℃/min | Heating rate 3℃/min, cooling rate 1℃/min(average rate, non-linear change) | ||||||
| Exterior chamber material | Cold-rolled plate + Powder coating | ||||||

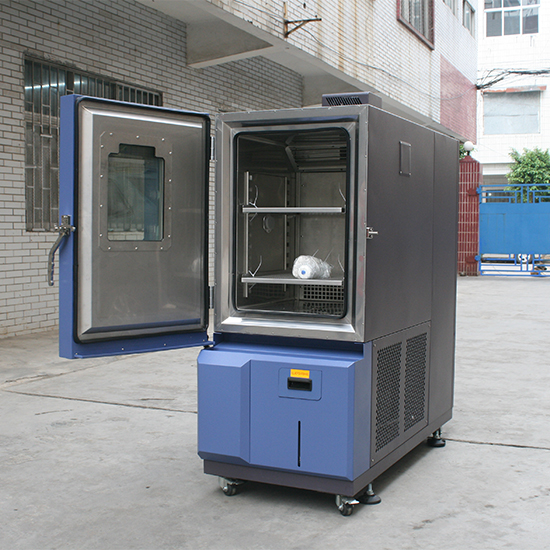

| Interior chamber material | SUS#304 Stainless steel | ||||||
| Insulation material | PU | ||||||
| Circulation system | Centrifugal fan air circulation system | ||||||
| Heating system | SUS# Stainless steel high-speed heater | ||||||
| Humidification system | Electrothermal steam humidification | ||||||
| Dehumidifying | ADP critical dew point cooling / dehumidifying method | ||||||
| Refrigeration system | Compressor + Finned evaporator + Air(Water) cooled condenser | ||||||
| Controlling system | Touch screen controller+SSR+PID | ||||||
| Other components | Vacuum glass observation window | ||||||
| Test hole (50mm) | |||||||
| Control status indicator | |||||||
| Interior light | |||||||
| Loading shelf (2pcs, height adjustable) | |||||||
| Safety protection device | Overheat protection circuit breaker | ||||||
| Humidification system overheat protection | |||||||
| Compressor overload protection | |||||||
| Control system overload protection | |||||||
| Overload indicator | |||||||
| Phase sequence protection | |||||||
| Water shortage protection | |||||||
| High voltage and low voltage protection | |||||||
| Over-temperature protection | |||||||
| Water supply delay protection | |||||||
| Fan overcurrent protection | |||||||
| Power supply | AC 1Ψ 220V; 3Ψ 380V 60/50Hz | ||||||
| Customization service | Non-standard or special requirements can be customized. | ||||||
Imported Touch Screen Controller with Multiple Languages
Equipped with an imported touch screen controller supporting 5 languages for convenient operation.
PC Remote Control and Monitoring
Supports PC connection for remote control and monitoring of testing processes.
Automatic Water Replenishment Function (Optional)
The optional automatic replenishment function helps reduce manual operation during testing.
Practical Patented Design
Designed with new and practical patented technologies.
Dual Compressor Cooling System
Equipped with two compressors and environmentally friendly refrigerants to improve cooling performance, with temperatures reaching as low as -80℃.
304 Stainless Steel Inner Chamber
Uses 304 stainless steel as the inner chamber material for durability and corrosion resistance.
Flexible Water Tank Design
Features a flexible water tank design for easier operation and maintenance.
Custom Service Available
Provides customized options based on different customer requirements.
