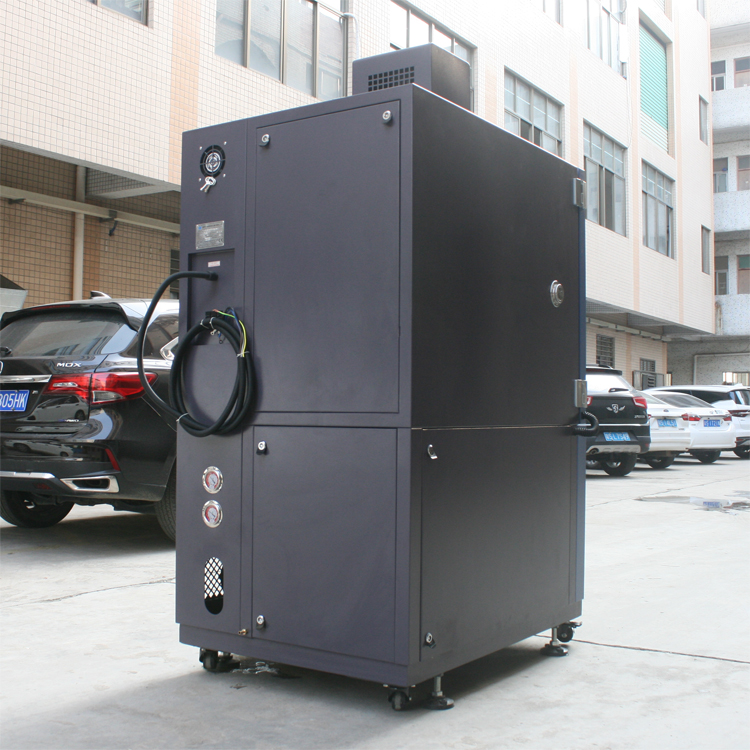

80l 20c/min Rate Programmable Ess Chamber With Fast Temperature Change Rate

80L Programmable ESS Chamber

Model: YICT-225 YICT-306 YICT-408 YICT-800 YICT-1000

Main Parameters:

  • Temperature range: -20℃/-40℃/-70℃~+150℃

  • Rapid-rate temperature range:-40℃~+85℃

  • Ramp rate:3℃/5℃/8℃/10℃/15℃ /20℃ per min(linear type or non-linear type)

Get 80L Programmable ESS Chamber Price
Description Parameters Features

Description of 80l 20c/min Rate Programmable Ess Chamber With Fast Temperature Change Rate

Ess chamber is used to materials' performance with a very fast temperature change rate, the goal to improve the quality of customers' products. It can help make some improvements in product reliability and quality. The users can through many high-temperature alternating cycles to test product performance, and confirm the anti-aging ability of the product, diagnose the service life of the product, so as to achieve the purpose of improving the quality of the product. We are available with 3-20℃ ramp rate, including linear and nonlinear cooling and heating changes.

Ess chamber usually is applied in aerospace, communication, automotive, electronics product, etc.

Parameter of 80l 20c/min Rate Programmable Ess Chamber With Fast Temperature Change Rate

Inner chamber size(cm)40×50×40
Exterior chamber size (cm)Depends on chamber design
Testing temperature range’-70℃~150℃(KS);-40℃~150℃(KL);-20℃~150℃(KR)
Rapid-rate temperature range-55℃~+85℃;-40~+80℃;-20~+80℃; 0~+80℃
Temperature gradient3℃/min, 5℃/min, 8℃/min, 10℃/min, 15℃/min, 20℃/min (linear or non-linear,empty loading),customization is available
Temp. fluctuation±0.3℃
Temp. uniformity±2℃(empty loading after stabilizing for 30 mins)
Temp. resolution0.01℃
Exterior chamber materialCold-rolled plate + Powder coating
Interior chamber materialSUS#304 Stainless steel
Insulation materialPU+ fiberglass wool
Circulation systemCentrifugal fan air circulation system
Heating systemSUS# Stainless steel high-speed heater
Refrigeration systemCompressor + Finned evaporator + Air(Water) cooled condenser
Controlling systemTouch screen controller+SSR+PID
Other componentsVacuum glass observation window
Test hole (50mm)
Control status indicator
Interior light
Compartment shelf (2 freely adjustable)
Safety protection deviceOverheat protection circuit breaker
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
High voltage and low voltage protection
Over-temperature protection
Fan overcurrent protection
Power supplyAC 3Ψ380V 60/50Hz (another power supply is optional)
Customization serviceNon-standard or special requirements are all welcome

Features of 80l 20c/min Rate Programmable Ess Chamber With Fast Temperature Change Rate

  • Touch screen controller, support different language

  • Fully welded process ensure the chamber structure and appearance are more reasonable

  • 20℃ per min temperature change rate

  • Access to PC remote control and monitoring

  • Flexible and strong door lock

  • Double temperature protection

  • Paperless recorder is optional

  • Three color light to indicate chamber status
