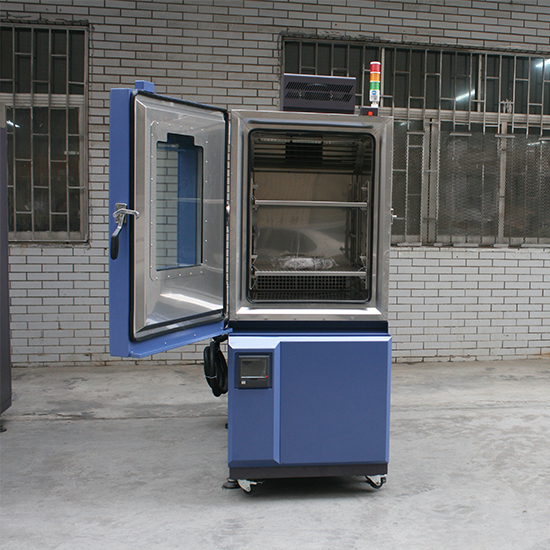

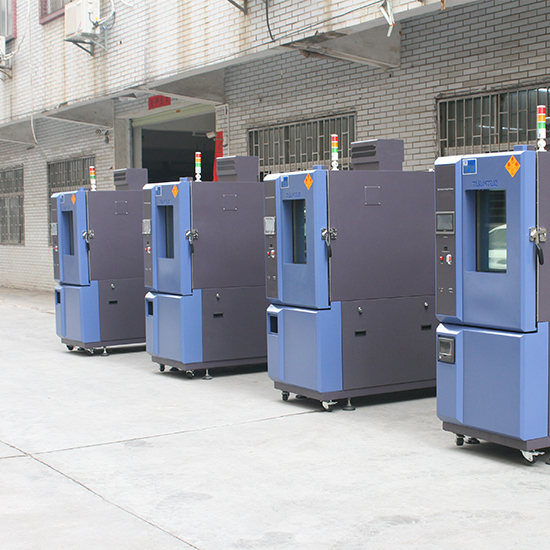

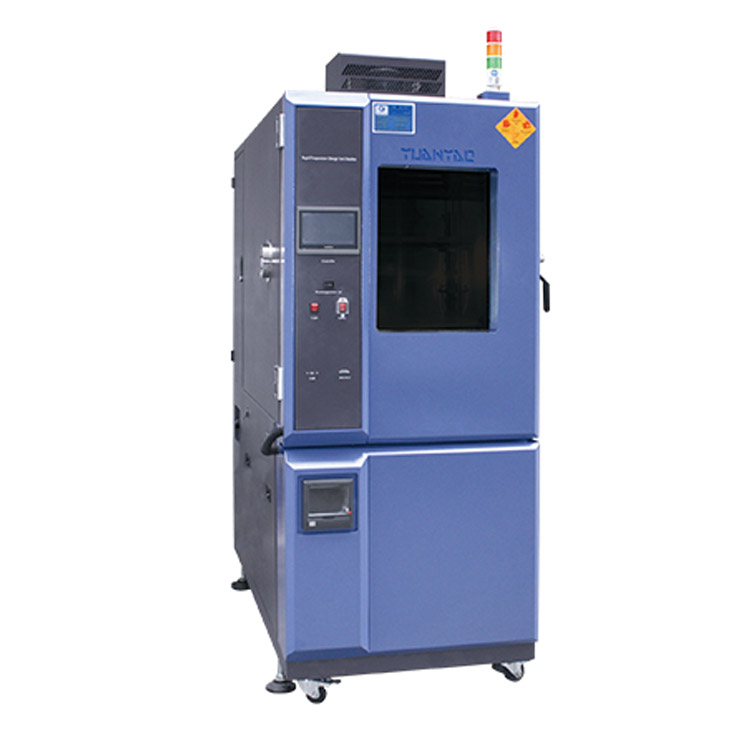

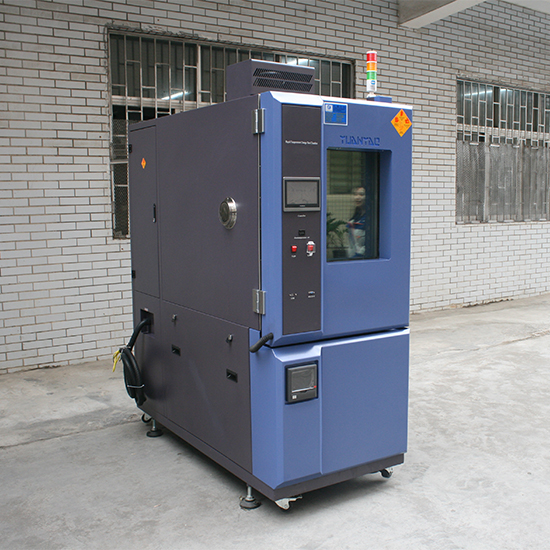

Rapid Rate Temperature Cycling Test Chamber

Model: YICT-225 YICT-306 YICT-408 YICT-800 YICT-1000

Temperature Cycling Test Chamber Performance


  • Temperature range: -20℃/-40℃/-70℃~+150℃

  • Rapid-rate temperature range:-40℃~+85℃

  • Ramp rate:3℃/5℃/8℃/10℃/15℃ per min(linear type or non-linear type)


Get Rapid Rate Temperature Cycling Test Chamber Price
Description Parameters Features

Description of Rapid Rate Temperature Cycling Chambers


Used to test the performance of products in rapid temperature change conditions.


Mainly applied in aerospace products, information electronic instrumentation, materials, electrical, electronic products, and various electronic components, etc.


Test standards: It meets GB/T2423.1-2001GB/T2423.2-2001GB/T2423.4-2001 etc test standards.


As one of the most professional temperature cycling chamber manufacturers in China, Yuanyao provide high quality temperature cycling chambers, feel free to contact!

Parameter of Rapid Rate Temperature Cycling Chamber


ModelYICT-225YICT-306YICT-408YICT-800YICT-1000
Inner chamber size(cm)60×75×5060×85×6080×85×50100×100×80100×100×100
Exterior chamber size (cm)Depends on chamber design
Testing temperature range'-70℃~150℃(KS);-40℃~150℃(KL);-20℃~150℃(KR)
Rapid-rate temperature range-55℃~+85℃;-40~+80℃;-20~+80℃; 0~+80℃
Temperature gradient3℃/min, 5℃/min, 8℃/min, 10℃/min, 15℃/min (linear or non-linear,empty loading),customization is available
Temp. fluctuation±0.3℃
Temp. uniformity±1.5℃(empty loading after stabilizing for 30 mins)
Temp. resolution0.01℃
Exterior chamber materialCold-rolled plate + Powder coating
Interior chamber materialSUS#304 Stainless steel
Insulation materialPU+ fiberglass wool
Circulation systemCentrifugal fan air circulation system
Heating systemSUS# Stainless steel high-speed heater
Refrigeration systemCompressor + Finned evaporator + Air(Water) cooled condenser
Controlling systemTouch screen controller+SSR+PID
Other componentsVacuum glass observation window
Test hole (50mm)
Control status indicator
Interior light
Compartment shelf (2 freely adjustable)
Safety protection deviceOverheat protection circuit breaker
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
High voltage and low voltage protection
Over-temperature protection
Fan overcurrent protection
Power supplyAC 3Ψ380V 60/50Hz
Customization serviceNon-standard or special requirements are all welcome


Features of Rapid Rate Temperature Cycling Chamber


  • Import touch screen controller, support different language

  • Rapid rate is able to choose (3℃, 5℃, 8℃,10℃,15℃)

  • Access to PC remote control and monitoring

  • Heating, cooling, humidification, dehumidification separately, unique BTHC balance temperature regulation and humidity control
