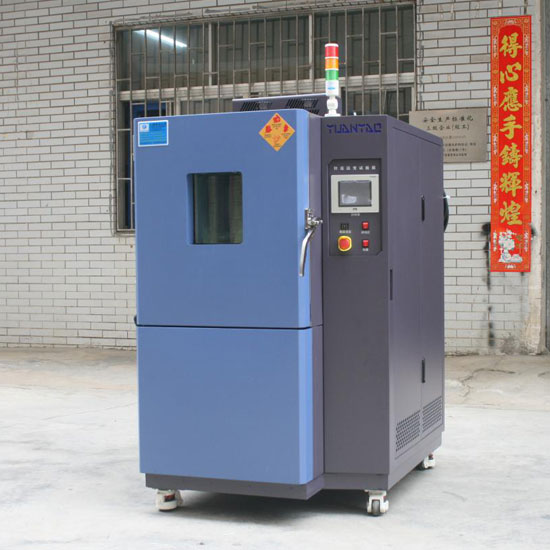

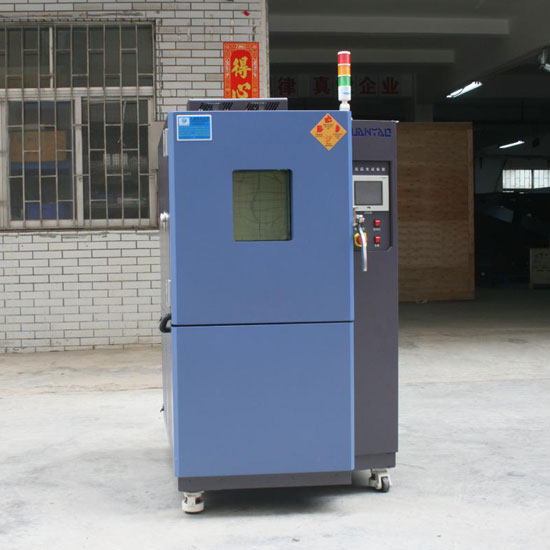

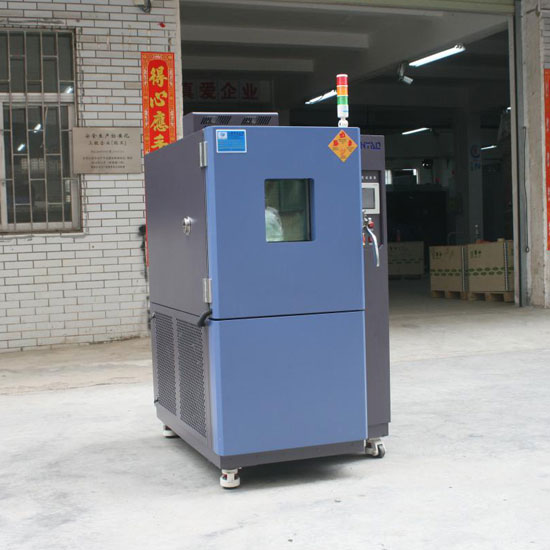

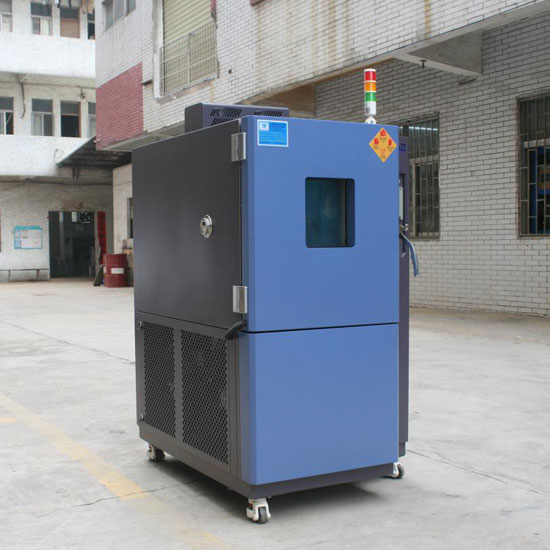

Fast Temperature Change Test Chamber for Aerospace Research

Fast Temperature Change Test Chamber for Aerospace Research

Model: YICT-150

Fast Temperature Change Test Chamber Product Performance

  • Temperature range: -40℃~150℃

  • Rapid-rate temperature range: -40℃~+85℃

  • Ramp rate:7℃/ min( non-linear type)



Get Fast Temperature Change Test Chamber for Aerospace Research Price
Description Parameters Features

Description of Fast Temperature Change Test Chamber

Fast temperature change test chamber is used to materials' performance with a very fast temperature change rate, the goal to improve the quality of customers' products. It can help make some improvements in product reliability and quality.

Mainly used for accelerated aging aircraft parts and airborne equipment processing, communication and navigation equipment, aviation composite materials, aircraft large parts, aircraft pilot simulator, avionics instruments, airport lighting, fire equipment and other materials


Parameter of Rapid Rate Temperature Cycling Chamber


ModelYICT-150
Inner chamber size(mm)

500*600*500 (W*H*D)

Exterior chamber size (cm)Depends on chamber design
Testing temperature range

-40℃~150℃

Rapid-rate temperature range

-40℃~+85℃

Temperature gradient

7℃/ min (linear or non-linear,empty loading),customization is available

Temp. fluctuation±0.3℃
Temp. uniformity±1.5℃(empty loading after stabilizing for 30 mins)
Temp. resolution0.01℃
Exterior chamber materialCold-rolled plate + Powder coating
Interior chamber materialSUS#304 Stainless steel
Insulation materialPU+ fiberglass wool
Circulation systemCentrifugal fan air circulation system
Heating systemSUS# Stainless steel high-speed heater
Refrigeration systemCompressor + Finned evaporator + Air(Water) cooled condenser
Controlling systemTouch screen controller+SSR+PID
Other componentsVacuum glass observation window
Test hole (50mm)
Control status indicator
Interior light
Compartment shelf (2 freely adjustable)
Safety protection deviceOverheat protection circuit breaker
Compressor overload protection
Control system overload protection
Overload indicator
Phase sequence protection
High voltage and low voltage protection
Over-temperature protection
Fan overcurrent protection
Power supplyAC 3Ψ380V 60/50Hz
Customization serviceNon-standard or special requirements are all welcome


Features of Fast Temperature Change Test Chamber

  • Import touch screen controller, support different language

  • Rapid rate is able to reach 20℃/min if needed

  • Access to PC remote control and monitoring(Ethernet option)

  • Heating, cooling, humidification, dehumidification separately, unique BTHC balance temperature regulation and humidity control

  • Inner chamber has slideway for custom fixture
